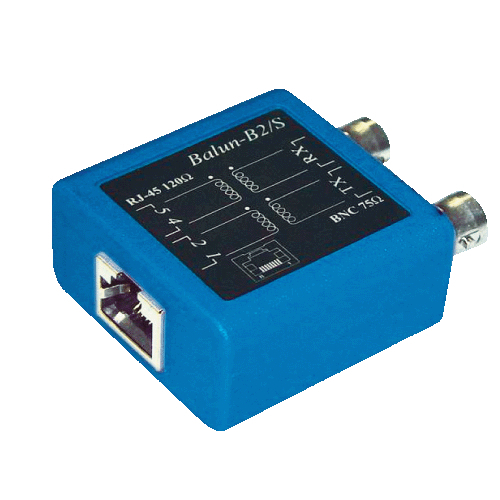

Coaxial Balun Box Double BNC Female to RJ45 (Litech) @ 650 บาท/อัน

Coaxial Balun Box Double BNC Female to RJ45 (Litech) @ 650 บาท/อัน

Product Overview : -

Litech offers a complete range of baluns for system which have different characteristic impedance. Baluns are used to solve the impedance mismatch problem in modern transmission system, where many modern system are designed with 120 Ohm balanced twisted pair cable where as most of the older system are 75 Ohm unbalanced interface network and vice versa. Litech manufactured baluns with variety of connector interface and design to suite different applications in the network.

Advantage : -

· Convert betaween 75 Ohm coaxial to 120 Ohm twisted pair
· 2-8-34 Mbit/s data stream version
· Bi-directional
· No power required
· Compact and light weight
· Easy to install
· Variety for connector interface and design

Specification : -
Material, Mechanical and Electrical Specification

Insertion Loss :
· 2 Mbit/s : < 0.2 dB
· 8 Mbit/s : < 0.3 dB
· 34 Mbit/s : < 0.8 dB

Return Loss :
· 2 Mbit/s : < -29 dB
· 8 Mbit/s : < -22 dB
· 32 Mbit/s : < -15 dB

Crosstalk : < -80 dB

Coaxial :
· Contact – Beryllium Copper
· Insulator – Taflon
· Durability - > 500 matings

RJ45 :
· Contact – Copper Alloy – Gold Plating
· Durabillity : > 200 Cycles
