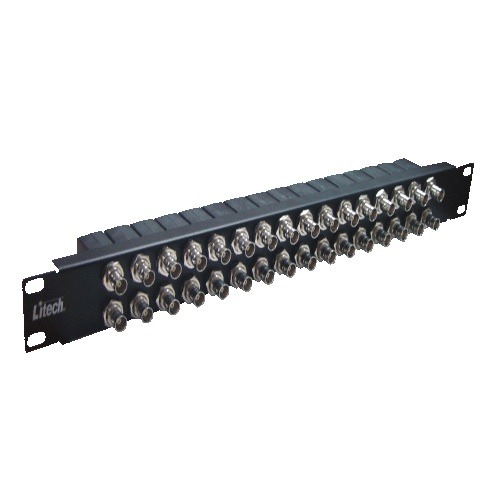

Coaxial Balun Panel 19" 32 Port BNC Female Panel Mount @13,000 บาท/ชุด

Product Overview : -

Litech offer wide range of rack mountable balun panel for conversion of 75 ohm coaxial transmission to 120 ohm balanced twisted pair and vice versa. The balun panel are designed with variety of connector interface to suite different applications in the network. Standard balun panels are 19" rack mount, 21" and 23" are available upon request.

Advantage : -
- Convert betaween 75 Ohm coaxial to 120 Ohm twisted pair
- Exceed ITU-G703 transmissions requirement
- 2-8 Mbit/s data stream version
- Bi-directional
- No power required
- Compact design
- 19” , 21” or 23” mounting available
- Variety for connector interface, include BNC, 1.6/5.6, BT43, SMB, 1.0/2.3

Specification : -
Material, Mechanical and Electrical Specification

Insertion Loss :
- 2 Mbit/s less than 0.2 dB
- 8 Mbit/s less than 0.3 dB

Return Loss :
- 2 Mbit/s less than -29 dB
- 8 Mbit/s less than -22 dB

Crosstalk : less than -80 dB

Coaxial Connector :
- Contact – Beryllium Copper
- Insulator – Taflon

RJ45 :
- Contact – Copper Alloy – Gold Plating
- Durabillity - more than 500 matings
