จำหน่ายbutterfly valve,วาล์วปีกผีเสื้อ,valve,วาล์วอุตสาหกรรม,วาล์ว,บัตเตอร์ฟลายวาล์ว

These products are widely used in water source projects, urban water supply and drainage, sewage treatment, electric power, petroleum, petrochemical, heat supply, shipbuilding, medicine and metallurgy industries. Valves used for regulating or cutting off liquids in pipelines.

Liquids available include water, sewage, sea water, air, foodstuff and oil.

Specifications:
1) Working temperature: -10 - +150ºC
2) Suitable for handles (DN50 - 300), gear operators, electric and pneumatic control actuators.

If you have interesting, please feel free to contact us.

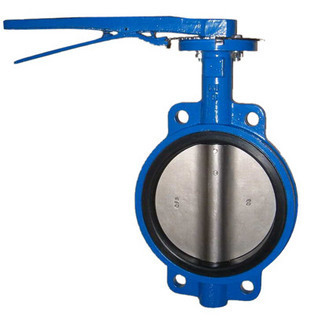

"BELGIUM VENTIEL"BUTTERFLY VALVE.



MODEL
BV10-2366E WAFER TYPE
BV10-2366T WAFER TYPE


BODY
CAST IRON GG25+EPOXY COATING
CAST IRON GG25+EPOXY COATING


DISE
STAINLESS STEEL 316 OR CF8M
STAINLESS STEEL 316 OR CF8M


SHAFT
STAINLESS STEEL 416�
STAINLESS STEEL 416�


LINER
EPDM, REPLACEABLE
PTFE, REPLACEABLE


FLANGE�����������

2"-12"

UNIVERSAL FLANGES (PN10/16,ANSI150,JIS10K)
UNIVERSAL FLANGES (PN10/16,ANSI150,JIS10K)


������������������������

14"-24"

PN10 OR ANSI150 OR JIS 10K (ON REQUEST)
PN10 OR ANSI150 OR JIS 10K (ON REQUEST)


PRESSURE����

2"-12"

250 PSI (16BAR)
250 PSI (16BAR)


�������������������������

14"-24"

150 PSI (10BAR)
150 PSI (10BAR)


SIZE (IN)

BARE SHAFT


HANDLEVER


GEARBOX


BARE SHAFT


HANDLEVER


GEARBOX




PRODUCT





















�
�
�
�
�
�


DN50 (2")
1,120
1,330
2,900
3,100
3,310
4,880


DN65 (2 1/2")
1,280
1,490
3,060
3,850
4,060
5,630


DN80 (3")
1,750
1,960
3,530
4,680
4,890
6,460


DN100 (4")
2,600
2,810
4,380
6,810
7,020
8,590


DN125 (5")
3,550
3,760
5,330
8,880
9,090
10,660


DN150 (6")
4,690
4,900
6,470
12,030
12,240
13,810


DN200 (8")
7,410
7,760
10,100
16,710
17,060
19,400


DN250 (10")
12,340
�
15,030
28,210
�
30,900


DN300 (12")
20,630
�
23,780
41,230
�
44,380



DIMENSIONS


** ราคานี้อาจเปลี่ยนแปลงได้โดยไม่ต้องแจ้งให้ทราบล่วงหน้า
