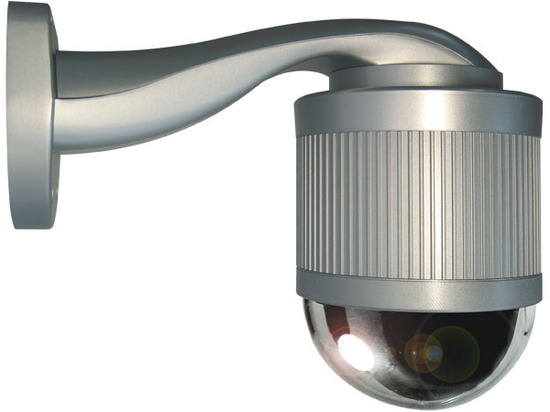

SPEED DOME AVP322 Outdoor 22X Zoom Speed Dome Camera

SPEED DOME AVP322
รหัสสินค้า: 000112
รายละเอียด: AVP322 Outdoor 22X Zoom Speed Dome Camera

Product Overview

Equipped with a 360° pan and 90° tilt base and 22X optical zoom lens, this outdoor type speed dome camera is
capable of following the moving object precisely with Intelligent Auto Tracking, and long-time operation with High
Spindle Reliability. Moreover, its Friendly Graphical OSD Interface and Convenient Keyboard Controller
Control support make the operation and surveillance simpler. With all these strong features, various demanding
applications for safety surveillance can be easily achieved

Features

◎Advanced Auto Tracking Accuracy
-- to follow the moving object
◎ Smart Zoom
-- to automatically zoom in the moving object
◎ Rigid & High-Speed Pan / Tilt Mechanism with Two-Million Rotation Test Passed
-- for longer operating lifetime
◎ Pelco-D & Pelco-P Support
-- for higher compatibility
◎ Flexible Color / Shutter Parameters Adjustment
-- to adapt various light conditions
◎ Graphical On-Screen Display
◎ Hot Point
◎ Easy Operation via Keyboard Controller
◎ IP67, suitable for outdoor use
◎ Up to 256 preset points & eight preset groups, and Auto Scan

Specifications

Signal System NTSC or PAL
Pick-up Element 1/4" Sony Color Super HAD CCD image sensor
Number of Pixels 768(H)*494(V) / 752(H)*582(V)
Resolution 480TV lines
Min. Illumination 0.3 Lux / F1.6
S/N Ratio More than 48dB (AGC off)
Video Output 1.0 Vp-p. 75Ω
BLC On / Off
Gain Control Low, Medium & High / Off
Sharpness Low / Medium / High
White Balance
Auto / Indoor 1 / Indoor 2 / Sun / Cloudy
* Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K
Camera Title 10 characters
Preset Points and Sequence
Total 8 groups, 256 programmable preset points
* The sequence of all the preset points will follow the order of the minimal
panning route.
Auto Tracking Yes (combined with auto zoom focus tracking)
▓ LENS
Focal Length f3.9 mm ~ f85.9 mm
F-number F1.6 (Wide) ~ 3.7 (Tele)
Viewing Angle 4∘~ 60∘
Auto Electronic Shutter 1 / 60 (1/50) to 1 / 100,000 sec.
Auto Focus Manual / Auto
▓ MECHANISM
Pan Range 360∘
Pan Speed
360∘/ 1 sec
* The pan speed can be adjusted according to the different pan speed mode.
Tilt Range 90∘
Tilt Speed 0∘~ 90∘under 1 sec
Zoom Ratio 22X optical zoom
Zoom Speed Approx. 7s (Tele ~ Wide)
▓ OTHERS
IP Rating IP67
Ambient Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Power Source (±10%) DC12V
Current Consumption 1.5 A (max)
Dimension (mm)** 145(Ø) x 184(H)
Gross Weight (g) Approx. 1.2 kg
Optional Bracket Wall-mounted
Optional Device Keyboard controller
